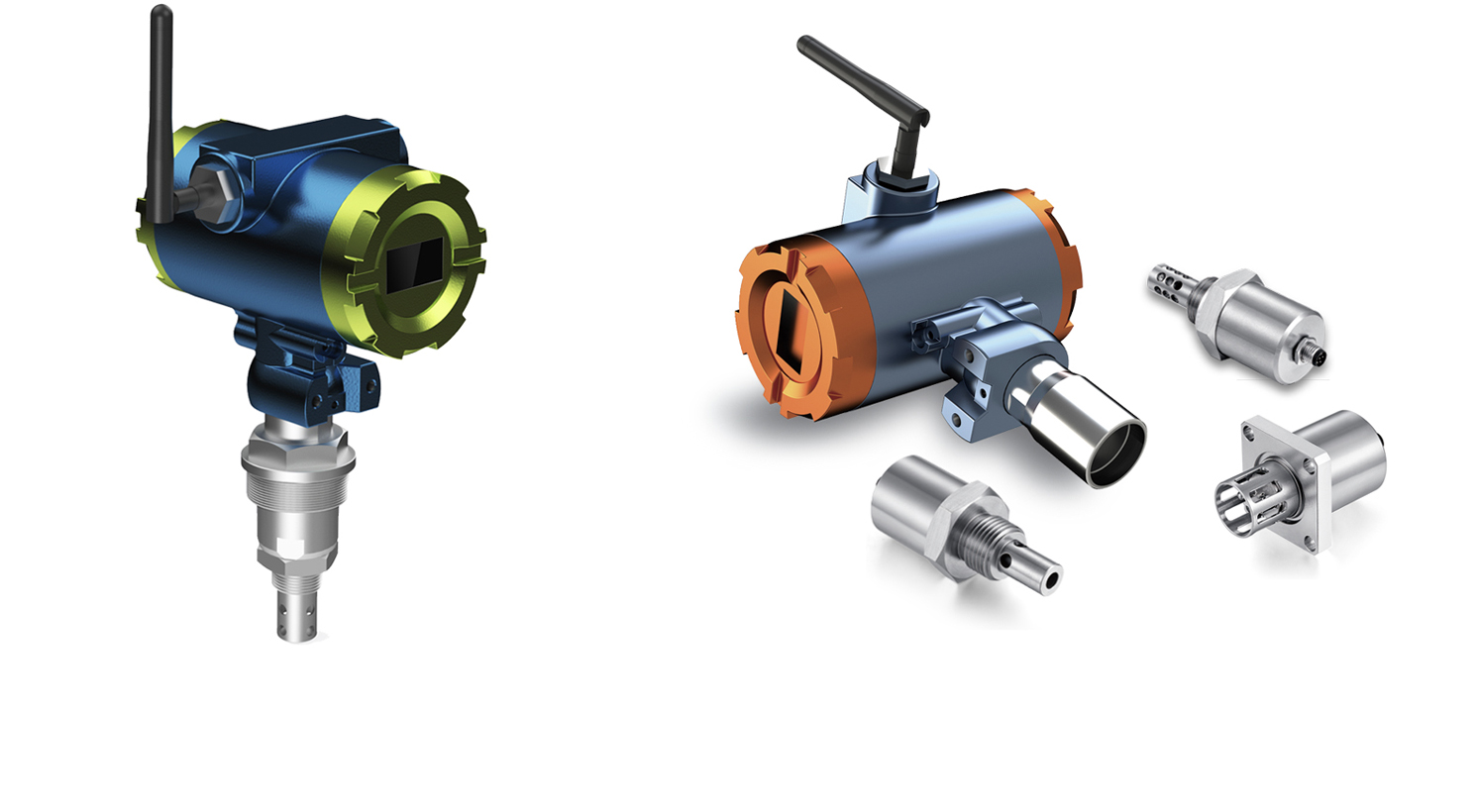

ISL-BS series main channel multi-parameter oil sensor adopts a new modular structure design, integrated with 4G communication module and display screen The data processing module and the front-end monitoring probe can be independently replaced according to the on-site monitoring requirements, which is suitable for industrial sites Mass deployment, to achieve systematic multi-point joint monitoring, to help equipment early fault operation and maintenance to achieve a large number of data acquisition, At the same time, through the intelligent match technology's Internet of Things cloud platform, multi-point integrated digital display can be achieved, suitable for viscosity and density Degree, dielectric constant, moisture content, temperature detection, and with the internal model data can be selected: real-time kinematic viscosity, 40℃ movement Viscosity, 100℃ kinematic viscosity, viscosity index, conductivity and other detection indicators, is a multi-functional small volume, large integration, low Cost, comprehensive application of multi-functional online monitoring oil sensing products.

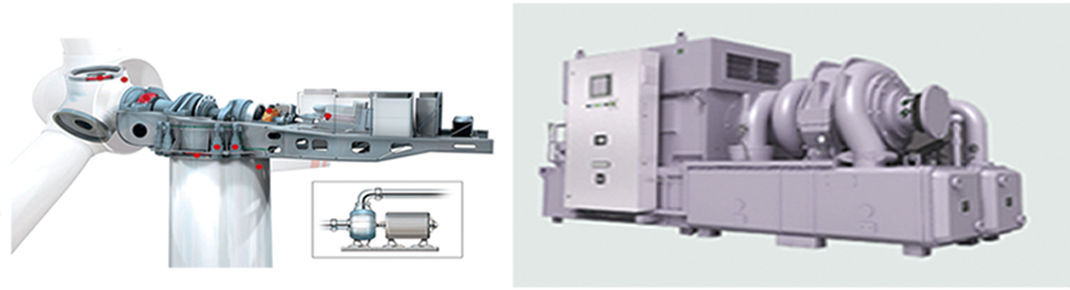

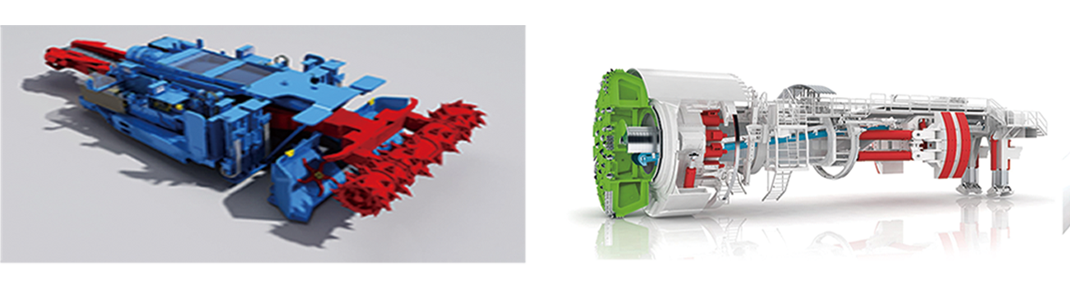

Application field:Steel, petrochemical, shield, power, wind power, large equipment, OEM integration
Applicable oil:Gear oil, hydraulic oil, turbine oil, diesel oil, insulation oil
IFV series multi-parameter oil sensor adopts patented multi-function integrated detection technology, with FOS model data, with industry-leading The back-end data processing module constitutes a large range, high precision, multi-functional oil comprehens- ive detection sensor, greatly reducing the on-line It is a representative product with large range and multiple parameters in the oi- l monitoring industry.The sensor viscosity, density index adopts the industry advanced precision resonant mechanism, dynamic vis- cosity detection can reach 1200CP; Internal integration The dynamic viscosity, density, dielectric constant, Moisture content, tem- perature detection, with internal model data can be selected: real-time kinematic viscosity, 40℃ kinematic viscosity, 100℃ Kinem atic viscosity, viscosity index, electrical conductivity and other testing indicators, truly achieve multi-functional small volume integ- ration of the comprehensive application of more Function online monitoring oil sensor.
Maximum oil temperature | Oil line pressure | 油路流速 | Operating ambient temperature | Highest altitude | Maximum vibration | Maximum humidity |
---|---|---|---|---|---|---|
+85℃ | 0-3Mpa | ≤1m/s | -20℃-85℃ | 5000m | 2G | 95% |
argument | range | precision | Resolution | CODE |
---|---|---|---|---|
Moisture content | 0-10000ppm | ±10% | 1ppm | W2A |
Saturation | 0-1aw | ±0.04 | 0.01aw | W2A |
Moisture content | 0-100% | ±0.03(Maximum range) | 0.01% | W2B |
Oil quality | 0-100 | ±3% | 0.01 | F2 |
Dynamic viscosity | 10-1200CP | ±3% | 0.01cp | V4 |
temperature | 20℃-85℃ | 0.1℃or±3% | 0.01℃ | |
density | 600 ~1500 kg. m³ | ±3% | 0.01kg. m³ | |
Host: standard configuration, probe according to the actual monitoring needs | ||||
Options: real-time kinematic viscosity, V40 viscosity, V100 viscosity, viscosity index, conductivity |
According to the field needs, can be matched with the model group number, such as monitoring gear oil, can be matched with the combination code
The accuracy corresponding to the above performance parameters is the typical value of 25℃. In the case of exceeding the requirements of the system working condition, the data may be biased, and the accuracy will change according to the pressure, flow rate, vibration and other data.
Communication interface | Data transmission | power | voltage | weight | Shell material | Cable length | Class of protection |
---|---|---|---|---|---|---|---|
6 core jet jack | RS485/232 | ≤5W | DC 9V~36V | 1000G | 316L | 1.5m | IP65 |

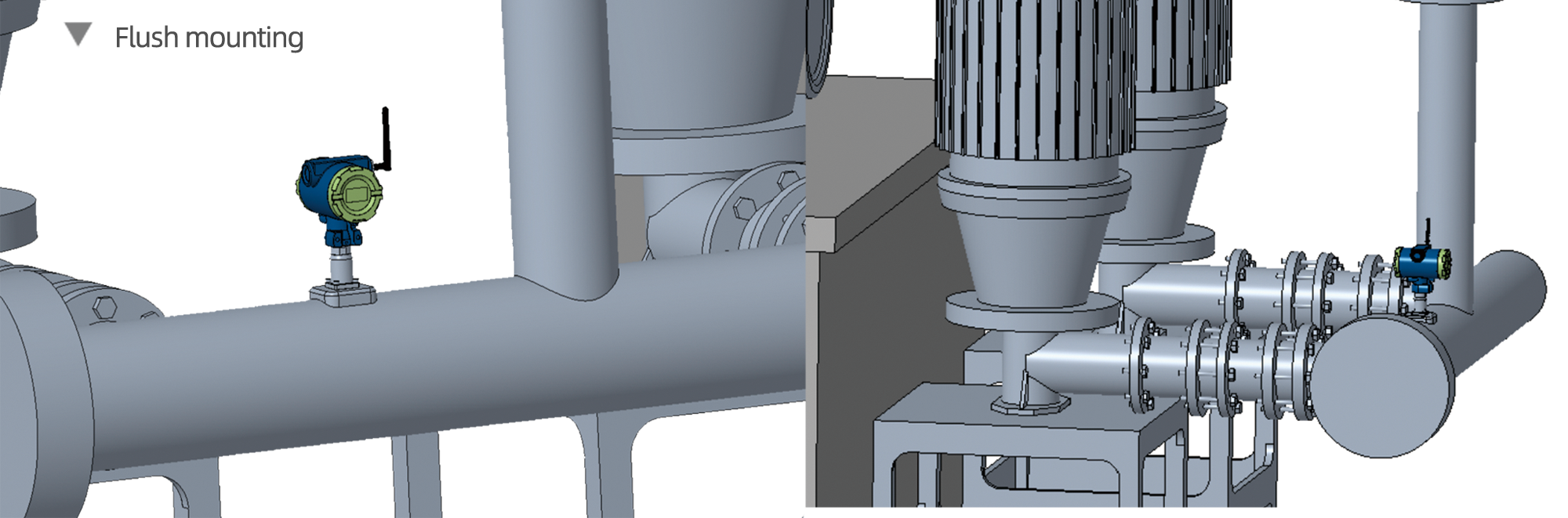

The above performance indicators are suitable for conventional industrial site installation and use, encounter complex and harsh outdoor environment and fluid property changes, customized design according to site requirements, you can also contact our sales engineers for recommendations
